Gate Design in Die Casting Molds: Mastering the Art and Science of Controlling Molten Aluminum Flow

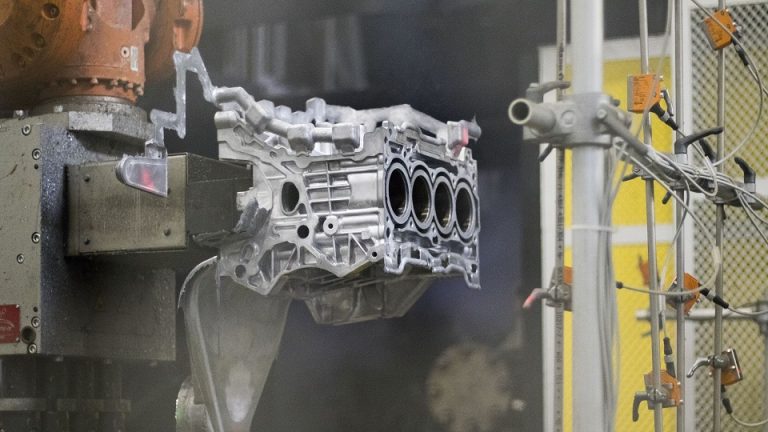

In the production of die-cast components, the mold is the most critical element. Inside any aluminum die casting plant, you can witness the scene of molten aluminum being injected into a mold under high pressure, instantly forming complex parts. However, within this seemingly rapid process, the flow behavior of the metal inside the cavity is complex and variable, directly impacting the final product's quality. Harnessing this metallic flow hinges on controlling the crucial passageway in the die casting mold – the gate.

The gate, that small channel connecting the runner system to the cavity, may represent only a tiny part of the overall mold, yet it dictates how – and in what state – the aluminum enters the cavity. Its design is a precise discipline blending fluid dynamics, heat transfer, and materials science. It is also one of the most critical aspects of modern die casting mold design.

Core Concepts in Gate Design

Imagine the flow of aluminum within the cavity. It can manifest in three primary modes: If the speed is too slow, it cools rapidly, forming a 'continuous flow' leading to cold flakes. As velocity increases, it breaks into uneven 'droplet flow,' where these partially solidified droplets cannot remelt, causing surface defects. Only when the speed reaches a critical point does the aluminum transform into a fine 'mist flow,' filling the cavity like a spray.

This mist flow is the ideal state engineers strive for. Possessing high momentum and energy, it can project to the farthest reaches of the cavity, ensuring complete filling, while also yielding a smooth surface finish. The gate's location, shape, and dimensions are the primary controls for achieving this ideal flow state.

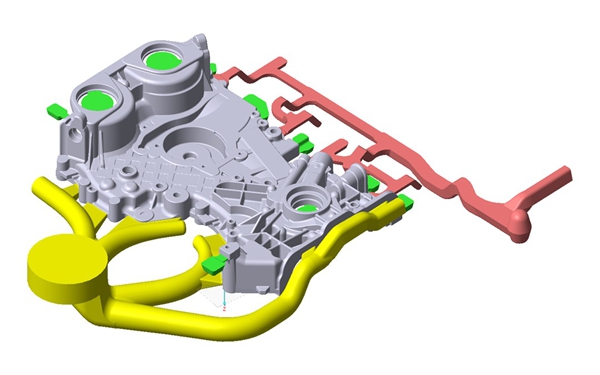

In practical custom aluminum die casting projects, engineers act like urban planners, zoning the product cavity. Based on the product's shape, wall thickness, and quality requirements, the cavity is divided into several relatively independent zones, each supplied by dedicated gates. This is akin to a large city having different water supply districts, ensuring each area receives adequate volume simultaneously, preventing 'flooding' in some areas and 'drought' in others. In die casting, this 'distribution according to need' principle ensures all zones fill at the same time, preventing vortices and air entrapment caused by flow imbalance.

Selecting the Right Gate Type

Through practice, engineers in Chinese die casting enterprises have developed a range of effective gate types to handle different product shapes. A common example is the 'fan gate,' which spreads out like an unfolded fan, allowing aluminum to enter the cavity evenly across a wider front. It is particularly suited for filling large, flat areas. This gate type can be further refined into the 'funnel type,' offering better flow guidance, and the 'trumpet type,' easier to machine, each with its own merits.

For annular or cylindrical parts, a 'tangential gate' is often the better choice. It directs the aluminum to enter along the tangent of the cavity wall, creating a smooth swirling flow. This effectively avoids the turbulence and gas entrapment caused by direct impingement on core pins. These practice-proven gate forms embody the accumulated wisdom in flow control.

Flow Analysis: Providing a 'Predictive Eye' for Design

If traditional gate design relied more on experience, modern die casting mold design has been revolutionized by the advent of Flow Analysis (CAE) technology. This tool allows engineers to conduct 'virtual trials' on computers, visualizing the entire flow path of aluminum inside the cavity beforehand.

Through flow analysis, we can visually assess whether the initially designed gate truly guides the flow into the desired pattern. Does the aluminum reach every corner smoothly? Where is the last place to fill? Are overflow wells and vents correctly positioned there? Are there any areas prone to defects due to flow resistance?

This process acts like a navigation system. When simulation reveals a 'traffic jam' (air entrapment) or 'dead end' (short fill) along a proposed 'route,' the engineer can go back and modify the gate design – adjusting its location, changing its size, or even switching its type – and then run the simulation again, iterating until an optimal solution is found. This 'design-simulate-optimize' iterative process, while requiring more upfront time, significantly reduces the cost and risk associated with physical trial runs, helping to ensure first-time mold success.

Practical Considerations in Gate Design

Gate design is not just science; it's also the art of pragmatism. For instance, the gate thickness typically should not exceed two-thirds of the product's wall thickness. This prevents damaging the part itself ('tear-out') during gate removal. Conversely, the gate shouldn't be too thin either – if less than 1 mm, it becomes highly susceptible to clogging from minor impurities, placing excessive demands on molten metal cleanliness.

At the junction between the gate and the cavity, a small 'gate land' or 'gate step' is usually incorporated. This seemingly insignificant distance acts like a dam for a reservoir – too short, and it risks erosion from the high-speed flow; too long, and it increases flow resistance. Its dimensions must be carefully determined based on the specific application.

Conclusion

From accumulated experience to scientific calculation, from manual adjustments to computer simulation, gate design in die casting molds has undergone a significant evolution. Today, when we see a die-cast aluminum part with a smooth surface and sound internal structure, it embodies the immense attention paid to the 'small detail' of the gate. For Chinese die casting companies committed to quality improvement, deeply understanding gate design principles, mastering flow analysis tools, and perfectly blending the art and science of flow control is undoubtedly a crucial path to standing out in fierce market competition. Ultimately, controlling the flow of aluminum means controlling the lifeblood of die casting quality.
